Description

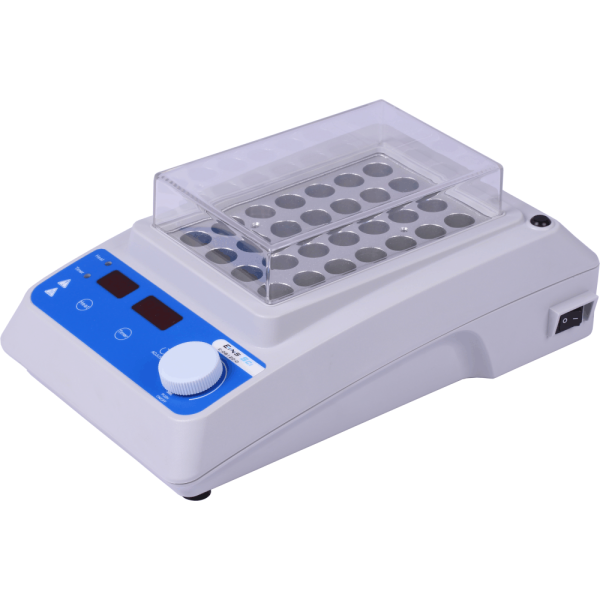

Digital ̴120°C Heating Dry Bath with Timer, LED Display, Over temperature protection, various size heating blocks available: check for availability of sizes, includes 1 standard size heating block
| Specifications | E-DB120-D |
| Heating Temperature Range [°C] | Ambient +5 to 120 |
| Power [W] | 160 |
| Number of Blocks | 1 |
| Dimension of Blocks [mm] | 150 x 95 |
| Temperature Display | LED |
| Control Accuracy [°C] | ±0.5 |
| Safety Temperature [°C] | 140 |
| Timer | Yes |
| Timer Setting Range [min] | 1 to 5999 |
| Operation Type | Continuous or Timed |
| Protection Class Acc. to DIN EN 60529 | IP 21 |
| RS232 Computer Interface | No |
| Dimensions [W x H x D] (mm) | 175 x 85 x 290 |
| Weight [kg] | 1.6 without heating block |
| Heating Block Material | |
| Housing Material | |
| Permissible Ambient Temperature [°C] | 5 – 40 |
| Permissible Relative Humidity [%] | 80 |
| Voltage [VAC] | 100 – 120 / 200 – 240 |
| Frequency [Hz] | 50/60 |
